Documentation #include <engine.h>

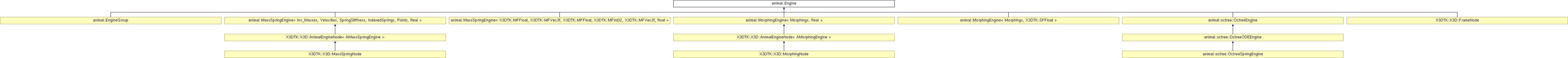

Inheritance diagram for animal::Engine:
For example, an engine can be animal::KeyFrameEngine, animal::MassSpringEngine...
This engine can be moved Engine::move(), initialized Engine::init(), drawn Engine::draw() and thus has a bounding box Engine::getBoundingBox().
It can handle key and mouse events animal::Event.
Definition at line 24 of file engine.h.
Public Member Functions | |
| Engine () | |
| Constructor. | |
| virtual void | init () |
| Init the engine and call reset(). Is done only one time. | |
| virtual void | reset () |
| Initialize the animation. | |
| virtual void | postReset () |
| Initialize the animation. | |
| virtual void | move (double) |
| Move the engine. | |
| virtual void | postMove (double) |
| Move the engine (called after move). | |
| virtual void | draw () |
| Draw the engine. | |
| virtual void | getBoundingBox (float &minX, float &minY, float &minZ, float &maxX, float &maxY, float &maxZ) |
| Compute the bounding box of the engine when it can be drawn. | |
| virtual void | keyPressEvent (KeyEvent *) |
| Deal with key press event. | |
| virtual void | mouseDoubleClickEvent (MouseEvent *) |
| Deal with mouse double-click event. | |
| virtual void | mouseMoveEvent (MouseEvent *) |
| Deal with mouse move event. | |
| virtual void | mousePressEvent (MouseEvent *) |
| Deal with mouse press event. | |
| virtual void | mouseReleaseEvent (MouseEvent *) |
| Deal with mouse release event. | |
| virtual ConstrainedItem * | pickPoint (float *, float *, float) |
| Pick along a line. | |
| void | drawBoundingBox () |
| Draw the bounding box. | |
Static Public Member Functions | |
| World * | world () |
| Return the animal::Engine::theWorld which gives some external informations. | |
| void | setWorld (World *w) |
| Ser the animal::Engine::theWorld to get some external informations. | |
Public Attributes | |
| bool | drawBBox |
| True when the bounding box is drawn with animal::Engine::drawBoundingBox(). | |
| bool | drawEngine |
| True when the engine is drawn with animal::Engine::draw(). | |
| bool | moveEngine |
| True when the engine is moved with animal::Engine::move(). | |
| bool | resetEngine |
| True when the engine is reset with animal::Engine::init(). | |
Static Private Attributes | |
| World * | theWorld = NULL |
| The world to get some external informations for drawing. | |
|
|
Constructor.
Definition at line 29 of file engine.h. References drawBBox, drawEngine, moveEngine, and resetEngine. |
|
|
|
Draw the bounding box.
Definition at line 80 of file engine.h. References drawBBox, and getBoundingBox(). |
|
||||||||||||||||||||||||||||
|
Compute the bounding box of the engine when it can be drawn.
Reimplemented in animal::MassSpringEngine< Inv_Masses, Velocities, SpringStiffness, IndexedSprings, Points, Real >, animal::EngineGroup, X3DTK::X3D::FrameNode, and animal::MassSpringEngine< X3DTK::MFFloat, X3DTK::MFVec3f, X3DTK::MFFloat, X3DTK::MFInt32, X3DTK::MFVec3f, float >. Definition at line 48 of file engine.h. Referenced by drawBoundingBox(). |
|
|
Init the engine and call reset(). Is done only one time.
Reimplemented in animal::octree::OctreeEngine, animal::EngineGroup, X3DTK::X3D::MorphingNode, X3DTK::X3D::FrameNode, X3DTK::X3D::MassSpringNode, X3DTK::X3D::AnimalEngineNode< AMassSpringEngine >, and X3DTK::X3D::AnimalEngineNode< AMorphingEngine >. Definition at line 32 of file engine.h. References reset(). Referenced by X3DTK::MainScene::addEngine(), X3DTK::X3D::MassSpringNode::init(), and X3DTK::X3D::FrameNode::init(). |
|
|
Deal with key press event.
|
|
|
Deal with mouse double-click event.
Reimplemented in X3DTK::X3D::AnimalEngineNode< AMassSpringEngine >, and X3DTK::X3D::AnimalEngineNode< AMorphingEngine >. |
|
|
Deal with mouse move event.
Reimplemented in X3DTK::X3D::AnimalEngineNode< AMassSpringEngine >, and X3DTK::X3D::AnimalEngineNode< AMorphingEngine >. |
|
|
|
Deal with mouse release event.
Reimplemented in X3DTK::X3D::AnimalEngineNode< AMassSpringEngine >, and X3DTK::X3D::AnimalEngineNode< AMorphingEngine >. |
|
|
||||||||||||||||
|
Pick along a line. Base implementation does nothing Reimplemented in animal::EngineGroup, X3DTK::X3D::AnimalEngineNode< AMassSpringEngine >, and X3DTK::X3D::AnimalEngineNode< AMorphingEngine >. |
|
|
Move the engine (called after move).
Definition at line 42 of file engine.h. Referenced by X3DTK::X3D::DeformableOctreeNode::postAnimate(). |
|
|
Initialize the animation.
Reimplemented in X3DTK::X3D::AnimalEngineNode< AMassSpringEngine >, and X3DTK::X3D::AnimalEngineNode< AMorphingEngine >. |
|
|
|
Ser the animal::Engine::theWorld to get some external informations.
Definition at line 77 of file engine.h. References theWorld. Referenced by MainController::MainController(). |
|
|
Return the animal::Engine::theWorld which gives some external informations.
Definition at line 74 of file engine.h. References theWorld. |
|
|
True when the bounding box is drawn with animal::Engine::drawBoundingBox().
Definition at line 100 of file engine.h. Referenced by drawBoundingBox(), and Engine(). |
|
|
True when the engine is drawn with animal::Engine::draw().
Definition at line 102 of file engine.h. Referenced by Engine(). |
|
|
True when the engine is moved with animal::Engine::move().
Definition at line 104 of file engine.h. Referenced by Engine(). |
|
|
True when the engine is reset with animal::Engine::init().
Definition at line 106 of file engine.h. Referenced by Engine(). |
|
|
The world to get some external informations for drawing. For exemple the camera position and orientaion. It is defined and set in the MainController with the X3DTK-Qt architecture. Definition at line 31 of file MainController.cpp. Referenced by setWorld(), and world(). |
