X3DTK::X3D::FrameNode Class Reference

#include <frameNode.h>

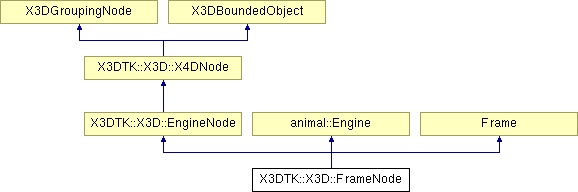

Inheritance diagram for X3DTK::X3D::FrameNode:

List of all members.

---

Detailed Description

This class represents a frame node which allows to control the frame of a X3DTK::X3D::Transform.

This x3d node has to have only one X3DTK::X3D::Transform parent and to have no child in the X3DTK::MainScene::x3dscene. This class implements the animal::Engine::draw() and animal::Engine::getBoundingBox(). Inherit from this class if you want to move the asssociated X3DTK::X3D::Transform. Thus implement animal::Engine::move() and animal::Engine::init()

Examples:

qtapp.cpp.

Definition at line 28 of file frameNode.h.

Public Member Functions
	FrameNode ()
	Constructor.
	~FrameNode ()
	Destructor.
void	updateFrame ()
	Update the qglviewer::frame parent from the parent.
void	updateTransform ()
	Update the X3DTK::X3D::Transform parent from the qglviewer::frame parent.
void	updateFrameNode ()
	Update the X3DTK::X3D::FrameNode from its attributes changed by X3DTK::Qt::X3DTransformQt.
void	declareOutputs (X3D_X3DNodeList &list)
Virtual methods from animal::Engine
virtual void	init ()
	Init the engine when loading the x3d graph.
virtual void	draw ()
	Draw the object.
virtual void	updateBoundingBox ()
	Update the bounding box of the object.
Public Attributes
SFVec3f	translation
SFRotation	rotation
SFVec3f	scale
SFRotation	scaleOrientation
SFVec3f	center
float	swollen
	Swollen the FrameNode::size.
Protected Member Functions
virtual void	getBoundingBox (float &minX, float &minY, float &minZ, float &maxX, float &maxY, float &maxZ)
	Compute the bounding box of the object.
Protected Attributes
Transform *	x3dTransformNode
	The associated X3DTK::X3D::Transform.
Private Member Functions
void	drawCone (float radius, float height, int nbSub)
void	drawCylinder (float radius, float length, int nbSub)
Private Attributes
float	size
	Fit the drawing bounding box and the axis of this FrameNode to all the bounded chilren of FrameNode::x3dTransform, save this FrameNode.

---

Constructor & Destructor Documentation

X3DTK::X3D::FrameNode::FrameNode (   )

Constructor. Definition at line 11 of file frameNode.cpp.

X3DTK::X3D::FrameNode::~FrameNode (   )

Destructor. Definition at line 24 of file frameNode.cpp.

---

Member Function Documentation

void X3DTK::X3D::FrameNode::declareOutputs (  X3D_X3DNodeList &  list  )  [virtual]

Reimplemented from X3DTK::X3D::EngineNode. Definition at line 344 of file frameNode.cpp. References X3DTK::X3D::X3D_X3DNodeList, and x3dTransformNode.

void X3DTK::X3D::FrameNode::draw (   )  [virtual]

Draw the object. Reimplemented from animal::Engine. Definition at line 54 of file frameNode.cpp.

void X3DTK::X3D::FrameNode::drawCone (  float  radius, float  height, int  nbSub )  [private]

Definition at line 272 of file frameNode.cpp.

void X3DTK::X3D::FrameNode::drawCylinder (  float  radius, float  length, int  nbSub )  [private]

Definition at line 310 of file frameNode.cpp.

void X3DTK::X3D::FrameNode::getBoundingBox (  float &  minX, float &  minY, float &  minZ, float &  maxX, float &  maxY, float &  maxZ )  [protected, virtual]

Compute the bounding box of the object. Reimplemented from animal::Engine. Definition at line 164 of file frameNode.cpp. References swollen, and x3dTransformNode. Referenced by updateBoundingBox().

void X3DTK::X3D::FrameNode::init (   )  [virtual]

Init the engine when loading the x3d graph. Reimplemented from animal::Engine. Definition at line 29 of file frameNode.cpp. References center, animal::Engine::init(), rotation, scale, scaleOrientation, translation, updateFrame(), and x3dTransformNode.

void X3DTK::X3D::FrameNode::updateBoundingBox (   )  [virtual]

Update the bounding box of the object. Implements X3DTK::X3D::EngineNode. Definition at line 155 of file frameNode.cpp. References getBoundingBox().

void X3DTK::X3D::FrameNode::updateFrame (   )

Update the qglviewer::frame parent from the parent. Definition at line 231 of file frameNode.cpp. References x3dTransformNode. Referenced by init(), and updateFrameNode().

void X3DTK::X3D::FrameNode::updateFrameNode (   )

Update the X3DTK::X3D::FrameNode from its attributes changed by X3DTK::Qt::X3DTransformQt. Definition at line 259 of file frameNode.cpp. References center, rotation, scale, scaleOrientation, translation, updateFrame(), and x3dTransformNode. Referenced by X3DTK::Qt::X3DTransformQt::update().

void X3DTK::X3D::FrameNode::updateTransform (   )

Update the X3DTK::X3D::Transform parent from the qglviewer::frame parent. Definition at line 244 of file frameNode.cpp. References x3dTransformNode.

---

Member Data Documentation

SFVec3f X3DTK::X3D::FrameNode::center

Definition at line 90 of file frameNode.h. Referenced by X3DTK::Qt::createTransformQWidget(), init(), and updateFrameNode().

SFRotation X3DTK::X3D::FrameNode::rotation

Definition at line 87 of file frameNode.h. Referenced by X3DTK::Qt::createTransformQWidget(), init(), and updateFrameNode().

SFVec3f X3DTK::X3D::FrameNode::scale

Definition at line 88 of file frameNode.h. Referenced by X3DTK::Qt::createTransformQWidget(), init(), and updateFrameNode().

SFRotation X3DTK::X3D::FrameNode::scaleOrientation

Definition at line 89 of file frameNode.h. Referenced by X3DTK::Qt::createTransformQWidget(), init(), and updateFrameNode().

float X3DTK::X3D::FrameNode::size [private]

Fit the drawing bounding box and the axis of this FrameNode to all the bounded chilren of FrameNode::x3dTransform, save this FrameNode. Definition at line 102 of file frameNode.h.

float X3DTK::X3D::FrameNode::swollen

Swollen the FrameNode::size. Definition at line 92 of file frameNode.h. Referenced by X3DTK::Qt::createFrameQWidget(), and getBoundingBox().

SFVec3f X3DTK::X3D::FrameNode::translation

Definition at line 86 of file frameNode.h. Referenced by X3DTK::Qt::createTransformQWidget(), init(), and updateFrameNode().

Transform* X3DTK::X3D::FrameNode::x3dTransformNode [protected]

The associated X3DTK::X3D::Transform. Definition at line 96 of file frameNode.h. Referenced by declareOutputs(), getBoundingBox(), init(), updateFrame(), updateFrameNode(), and updateTransform().

---

The documentation for this class was generated from the following files:

• frameNode.h
• frameNode.cpp

---
