X3DTK::Qt::AbstractMField Class Reference

#include <Fields.h>

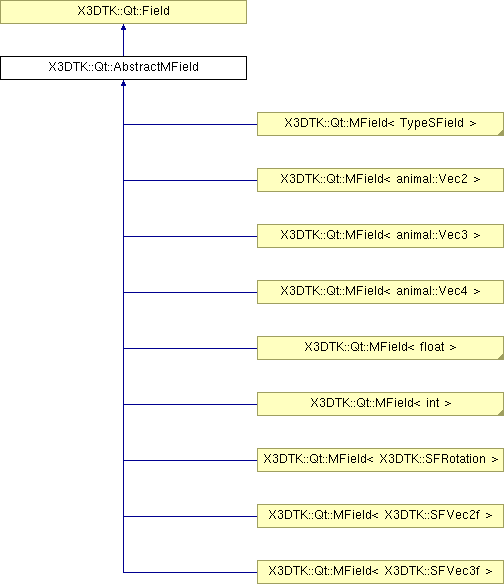

Inheritance diagram for X3DTK::Qt::AbstractMField:

List of all members.

---

Detailed Description

A pure abstract multiple field.

It's a Field which contains multiple of fields.

Definition at line 115 of file Fields.h.

Public Member Functions
	AbstractMField (QString name, void *pointer, unsigned int nbColumns=1, bool edit=false)
virtual QString	read ()=0
	Read the multiple fields of this field from the attribute Field::pointer.
virtual void	write (QString s)=0
	Write the multiple fields from a QString through the attribute Field::pointer.
Public Attributes
unsigned int	nbColumns
	The number of columns when the multi-fields are represented.
bool	edit
	Enable or not to edit the multiple fields.

---

Constructor & Destructor Documentation

X3DTK::Qt::AbstractMField::AbstractMField (  QString  name, void *  pointer, unsigned int  nbColumns = 1, bool  edit = false )  [inline]

Definition at line 127 of file Fields.h. References edit.

---

Member Function Documentation

virtual QString X3DTK::Qt::AbstractMField::read (   )  [pure virtual]

Read the multiple fields of this field from the attribute Field::pointer. Implemented in X3DTK::Qt::MField< TypeSField >, X3DTK::Qt::MField< animal::Vec4 >, X3DTK::Qt::MField< X3DTK::SFVec3f >, X3DTK::Qt::MField< X3DTK::SFVec2f >, X3DTK::Qt::MField< float >, X3DTK::Qt::MField< int >, X3DTK::Qt::MField< animal::Vec3 >, X3DTK::Qt::MField< animal::Vec2 >, and X3DTK::Qt::MField< X3DTK::SFRotation >. Referenced by X3DTK::Qt::MFEditor::load().

virtual void X3DTK::Qt::AbstractMField::write (  QString  s  )  [pure virtual]

Write the multiple fields from a QString through the attribute Field::pointer. Implemented in X3DTK::Qt::MField< TypeSField >, X3DTK::Qt::MField< animal::Vec4 >, X3DTK::Qt::MField< X3DTK::SFVec3f >, X3DTK::Qt::MField< X3DTK::SFVec2f >, X3DTK::Qt::MField< float >, X3DTK::Qt::MField< int >, X3DTK::Qt::MField< animal::Vec3 >, X3DTK::Qt::MField< animal::Vec2 >, and X3DTK::Qt::MField< X3DTK::SFRotation >. Referenced by X3DTK::Qt::MFEditor::ok().

---

Member Data Documentation

bool X3DTK::Qt::AbstractMField::edit

Enable or not to edit the multiple fields. When this attibute is true, take care of the internal coherence linked to the size of represented data via the attribute Field::pointer See also: MFEditor Definition at line 125 of file Fields.h. Referenced by AbstractMField().

unsigned int X3DTK::Qt::AbstractMField::nbColumns

The number of columns when the multi-fields are represented. Definition at line 119 of file Fields.h.

---

The documentation for this class was generated from the following file:

• Fields.h

---
